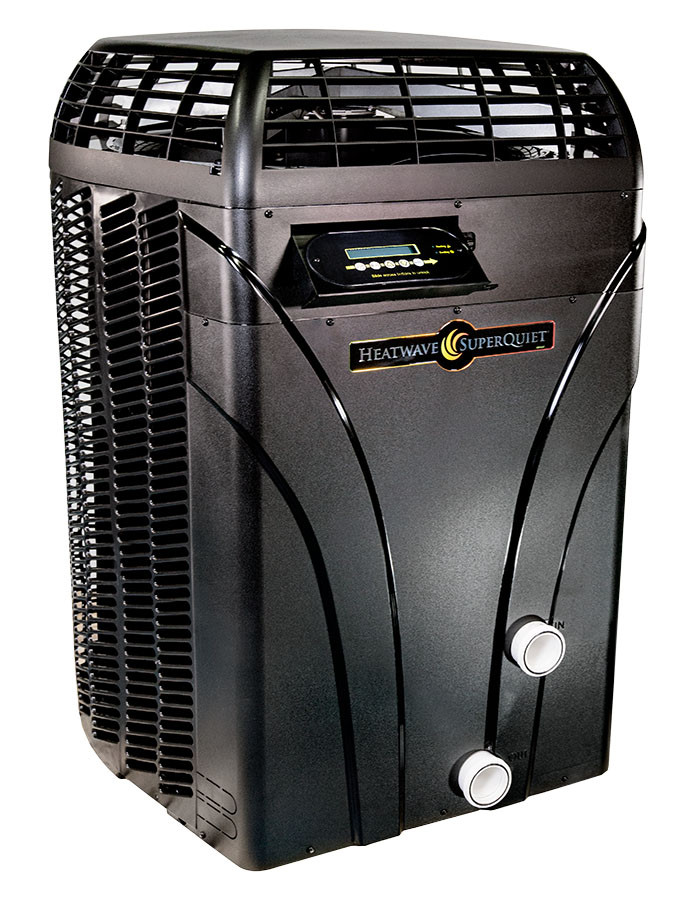

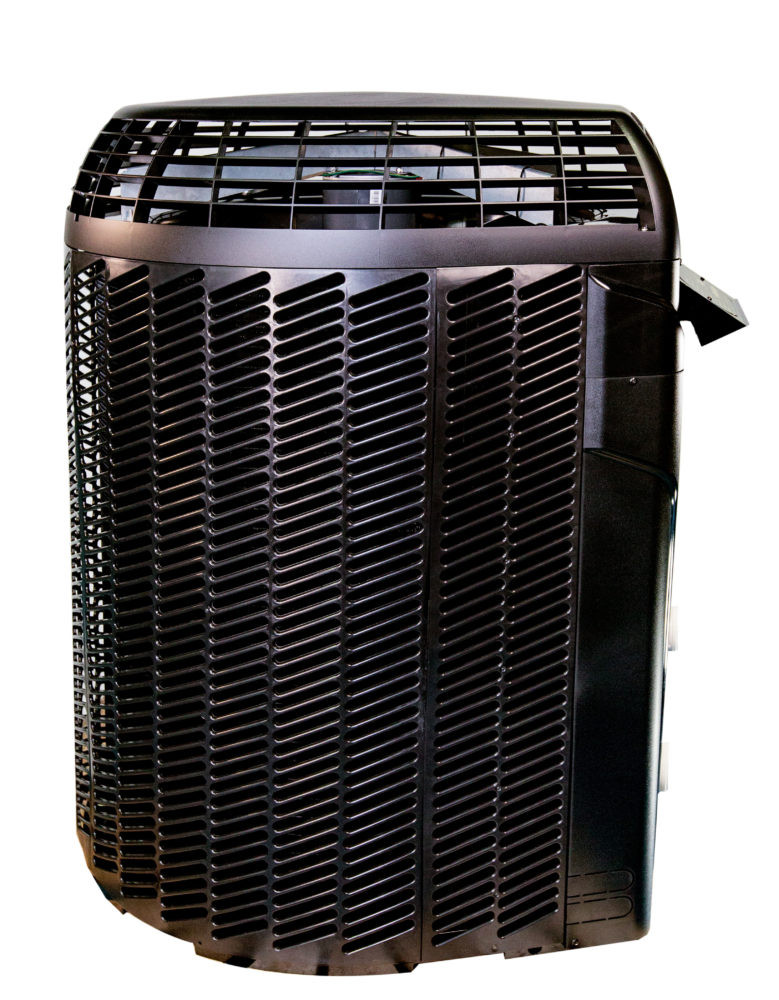

The HeatWave SuperQuiet® SQ225 comes equipped with all standard features. The Patented ThermoLink® Titanium Heat Exchanger at its core makes this unit a power-house that’s built to last.
Pick the unit best for you:
PoolSync® Ready
Adjust your heat mode and temperature setting right through your phone in the PoolSync app.
*Additional purchase of PoolSync WiFi Controller required
| 60 Hz | SQ125 | SQ145 | SQ225 | SQ120R | SQ166R | |
|---|---|---|---|---|---|---|
| BTUs (water temp/ambient air/relative humidity) |
||||||
| 80/80/80 | 101,000 | 121,000 | 143,000 | 110,000 | 126,000 | |
| 80/80/63 | 95,000 | 115,000 | 134,000 | 103,000 | 120,000 | |
| 80/50/63 | 62,000 | 75,000 | 90,000 | 72,000 | 82,000 | |
| Coefficient of Performance (water temp/ambient air/relative humidity) |
||||||
| 80/80/80 | 6.5 | 7.1 | 6.5 | 5.5 | 5.6 | |
| 80/80/63 | 6.1 | 6.8 | 6.1 | 5.3 | 5.3 | |
| 80/50/63 | 4.0 | 4.2 | 4.0 | 4.0 | 4.0 | |
| Refrigerant | R410A | R410A | R410A | R410A | R410A | |
| Electrical | ||||||
| Heat or Heat & Cool | H | H | H | H & C | H & C | |
| kW Input | 4.6 | 5.1 | 6.4 | 5.9 | 6.6 | |
| Voltage/Hz/Phase
|
A | A, B & G | A, B, E & G | A & B | A, B, E & G | |
| Maximum Fuse Size | A – 60 | A – 60 B – 50 G – 20 |
A – 60 B – 50 E – 30 G – 25 |
A – 60 B – 50 |
A – 60 B – 50 E – 30 G – 25 |
|
| Minimum Circuit Ampacity Over Temperature Alarm Kit available: part number STK0221 for single phase, STK0222 for three phases. Strongly recommended for all spa applications. |
A – 40.5 | A – 42.1 B – 31.0 G – 14.2 |
A – 42.1 B – 33.3 E – 18.4 G – 16.2 |
A – 38.5 B – 31.0 |
A – 42.1 B – 33.3 E – 18.4 G – 16.2 |
|
| Water Flow *A Heater Bypass Kit is required when flow rates exceed the maximum |
||||||
| Minimum/Maximum (gpm) | 30/70 | 30/70 | 30/70 | 30/70 | 30/70 | |
| Physical | ||||||
| Weight (lbs) | 258 | 305 | 315 | 273 | 310 | |
|
Length x Width x Height (in) |
34″ x 34″ x 44″ | 34″ x 34″ x 44″ | 34″ x 34″ x 44″ | 34″ x 34″ x 44″ | 34″ x 34″ x 44″ | |
| Shipping | ||||||
| Weight (lbs) | 298 | 345 | 355 | 313 | 350 | |
| Length x Width x Height (in) | 37″ x 36″ x 51″ | 37″ x 36″ x 51″ | 37″ x 36″ x 51″ | 37″ x 36″ x 51″ | 37″ x 36″ x 51″ | |
| Rated in accordance with AHRI standard 1160 water temp/ambient air/relative humidity | ||||||
| 50 Hz | SQ225 | SQ166R |
|---|---|---|
| Efficiency | ||
| KW Output | 35.2 | 31.7 |
| BTU Output | 120,000 | 108,000 |
| Coefficient of Performance (C.O.P) | 6.5 | 5.6 |
| KW Input | 5.4 | 5.7 |
| Electrical | ||
| Heat or Heat & Cool | H | H & C |
| Voltage/Hz/Phase H – 200-240/50/1 D – 380-420/50/3 |
D | D |
| Maximum Fuse Size | D – 25 | D – 25 |
| Minimum Circuit Ampacity | D – 16.2 | D – 16.2 |
| Refrigerant | R410A | R410A |
| Water Flow A Heater Bypass Kit is required when flow rates exceed the maximum |
||
| Minimum/Maximum (m3/h) | 6.8/15.9 | 6.8/15.9 |
| Minimum/Maximum (gpm) | 30/70 | 30/70 |
| Physical | ||
| Weight (kg) | 143 | 141 |
| Weight (lb) | 315 | 310 |
| Length x Width x Height (cm) | 87 x 87 x 112 | 87 x 87 x 112 |
| Length x Width x Height (in) | 34″ x 34″ x 44″ | 34″ x 34″ x 44″ |
| Shipping | ||
| Weight (kg) | 162 | 159 |
| Weight (lb) | 355 | 350 |
| Length x Width x Height (cm) | 94 x 92 x 130 | 94 x 92 x 130 |
| Length x Width x Height (in) | 37″ x 36″ x 51″ | 37″ x 36″ x 51″ |
Now you can control your heat pump right through your smartphone. Change the mode to heat, cool or autotemp (when applicable), and set your temperature through the PoolSync app.
*Additional purchase of PoolSync WiFi Controller required
AHRI’s globally recognized and industry respected heat pump pool heaters certification program provides outstanding value to equipment and component manufacturers, customers, and government regulators. AHRI Certified® products are subject to rigorous and continuous testing by a third-party laboratory under contract to AHRI. Only products certified by AHRI are listed in AHRI’s Directory of Certified Product Performance, a real-time database at web page. More information can be found online on the heat pump pool heaters Certification Program (web page), and the heat pump pool heaters contractors (web page).
